Location : Home >> 30-150M Fog Cannon
  • 100M fog cannon for dust control used in quarry site, constructions site, coal mining sites. 100M fog cannon for dust control used in quarry site, constructions site, coal mining sites.
  • 100M fog cannon for dust control used in quarry site, constructions site, coal mining sites. 100M fog cannon for dust control used in quarry site, constructions site, coal mining sites.

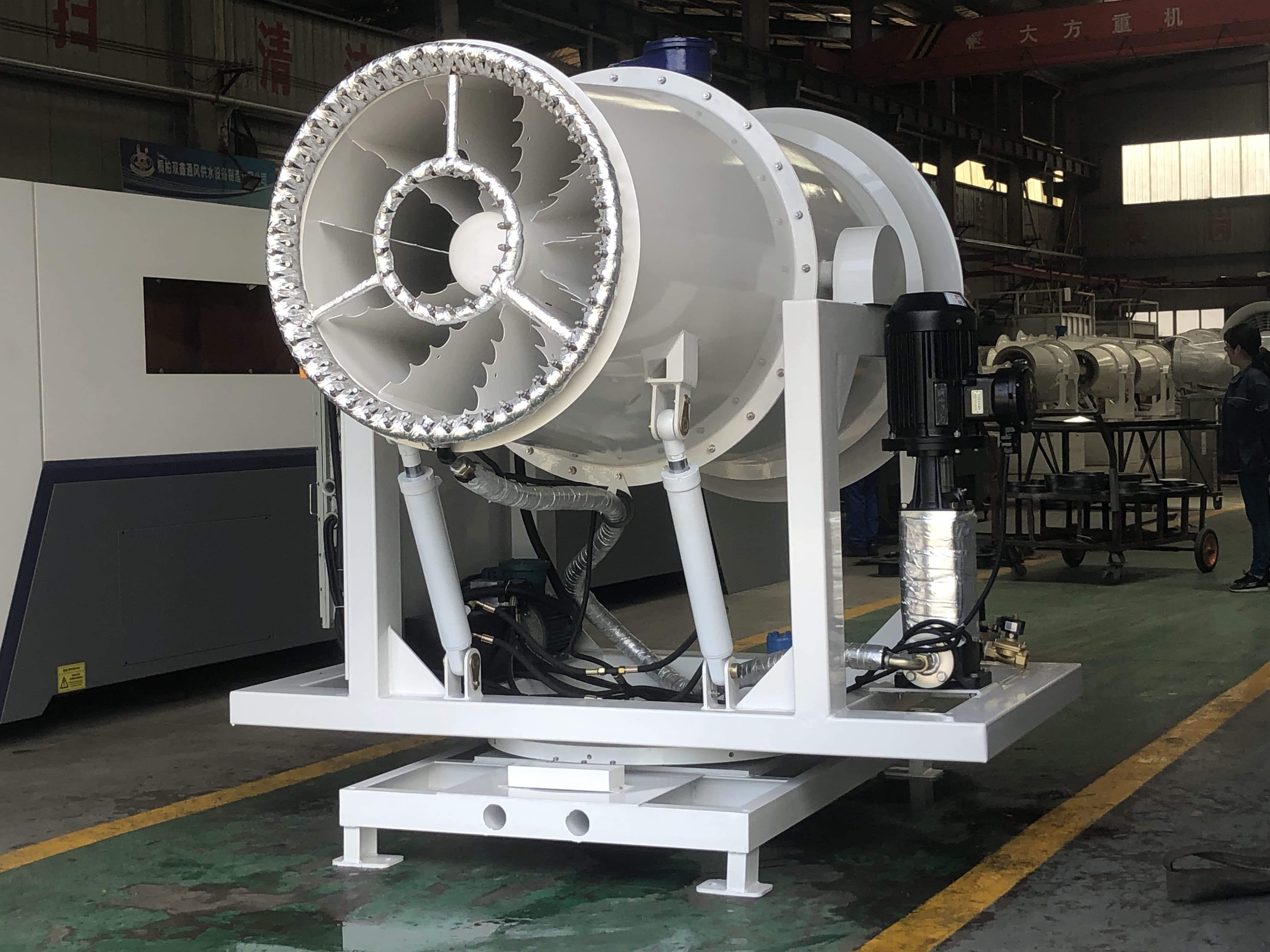

100M fog cannon for dust control used in quarry site, constructions site, coal mining sites.

Model Number:YT-100
Place of Origin:China
Added:2024-07-04
Views:
Keywords:fog cannon,mist cannon,dust control, dust suppression
Next Previous

Detailed introduction

At 100 m the machine stops being a site tool and becomes fixed plant. YT-100 covers 31400 m2, runs a 55 kW fan with an 11 kW
pump for about 68.2 kW total, and adds a dedicated 2.2 kW hydraulic pump station, a feature that appears from this size
upward because the head is too heavy to position by hand.

Flow is 12-16 T/H through 100 nozzles at 1.2 mm, droplet size 120 microns and above. Barrel is 2330 x 1100 mm,
overall height about 2350 mm, weight about 2000 kg.

Rotation 0-180 degrees, tilt 0-30 degrees, local or remote control, IP55, working range 0-55 C. Supply is selectable at
380, 415 or 440 V, 50 or 60 Hz.

Because of the weight and the water demand, the foundation and the supply line should be designed before the unit arrives
rather than after. Where a site cannot take a 2 tonne machine, the split-type 100 m version separates the fan and pump assemblies.

Application Fields:

1. Coal mines/Coal storage yard.

2. Quarry site

3. Stone Crushing plant

4. Loading/unloading Port

5. Steel/chemical/cement plants

6. Demolition/construction site

7. Agricultural pesticide spraying

8. Water Spray and evaporation.



Product options:

-Fog cannon with distance from 30m to 150m.

-Anti-Explosive fog cannon

-Anti-freeze fog cannon

-Noise Reduction fog cannon

-Stainless steel fog cannon

Features:

1. Rotating left and side from 0-180°, pitch angle 0-30° which ensures the fog cannon can cover a wide area.

2. Both Local control and remote control( Max 100m control distance). PLC automatic control customized available.

3. Stainless fog cannon available for sea water source.

4. Wooden carton package for long journey sea shipping.

5. Can do various color.

6. Long time use and one year after sales policy.

100M Fog Cannon Machine Data Sheet



Model

YT-100

Max covering area(m2)

31400m²

Mist diamater

≥120um

Fan power

55kw

Water pump power

11kw

Total Power

About 68.2kw

Water pump type

Multi stage stainless steel centrifugal pump

Water pump flow

12-16T/H

Wind Barrel Length

2330mm

Wind Barrel Diamater

1100mm

No. Of Water Ring

2

Nozzle No.

100pcs

Nozzle Hole Diamater

1.2mm

Waterway Material

304 Stainless Steel

Machine Overall Height

About 2350mm

Left and Right Rotating

0-180° Adjustable

Tilt Angle

0-30° Adjustable

Title Driven Device

Hydraulic Pump Station

Hydraulic Pump Station Power

2.2kW

Control Method

Local Control/ Remote Controller

Protection Level

IP55

Working Temperature

0-55℃(Anti-freeze type available)

Water Requirement

PH6-8,Suspended solids ≤ 50ppm

Power Supply

Customizable AC380v/415v/440V,50/60Hz Three Phase Four Wire System


Machine Weight

About 2000KG

High Quality Carbon Steel Material For The Entire Machine

Spray painting and baking paint technology is used for coating, which adopts shot blasting and rust removal treatment. The coating is long-lasting and has a substantial improvement compared to ordinary spray painting, with strong anti-corrosion properties.

Fan Blade

l Aluminum alloy fan blades, with high strength,

l Do not produce sparks when they rub against the inner wall of the air duct, making them safer to use.
